GelBox, PowerGel-filled Cable Joint for 4-core polymeric cables 0.6/1kV, including mechanical connector block

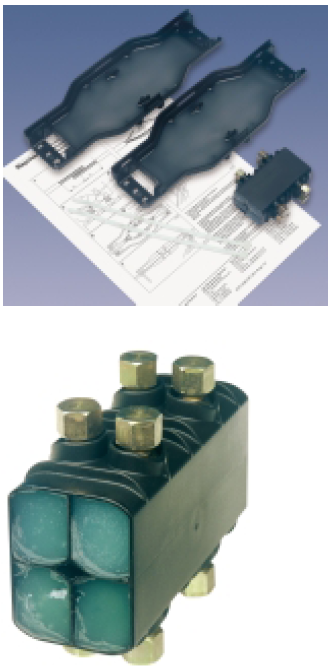

Uniquely easy to install, snapclose, clean, cold applied and UV stable PowerGel-filled closure including a sealed mechanical shear bolt insulation piercing connector block.

Excellent cold applied seal, the Raychem GelBox offers a state-of-the-art sealed joint for underground and direct-buried applications.
PowerGel sealing gel technology, the GelBox closure and the connector block, with their revolutionary PowerGel sealing gel, cover and seal
the joint quickly and easily, saving both time and effort. PowerGel sealing gel is rated to 90°C continuous temperature with an unlimited shelf life.
History, the GelBox joint is yet another one of Raychem’s field-proven PowerGel filled products for the demanding requirements of the electrical power industry.
Capacity, the Raychem GelBox covers a wide application range of 4-core cables from 6 to 25mm2 for both aluminium and copper conductors, stranded or solid and in addition 35mm2 with round solid aluminium conductors. Size transitions or transitions from copper to aluminium are also possible.
